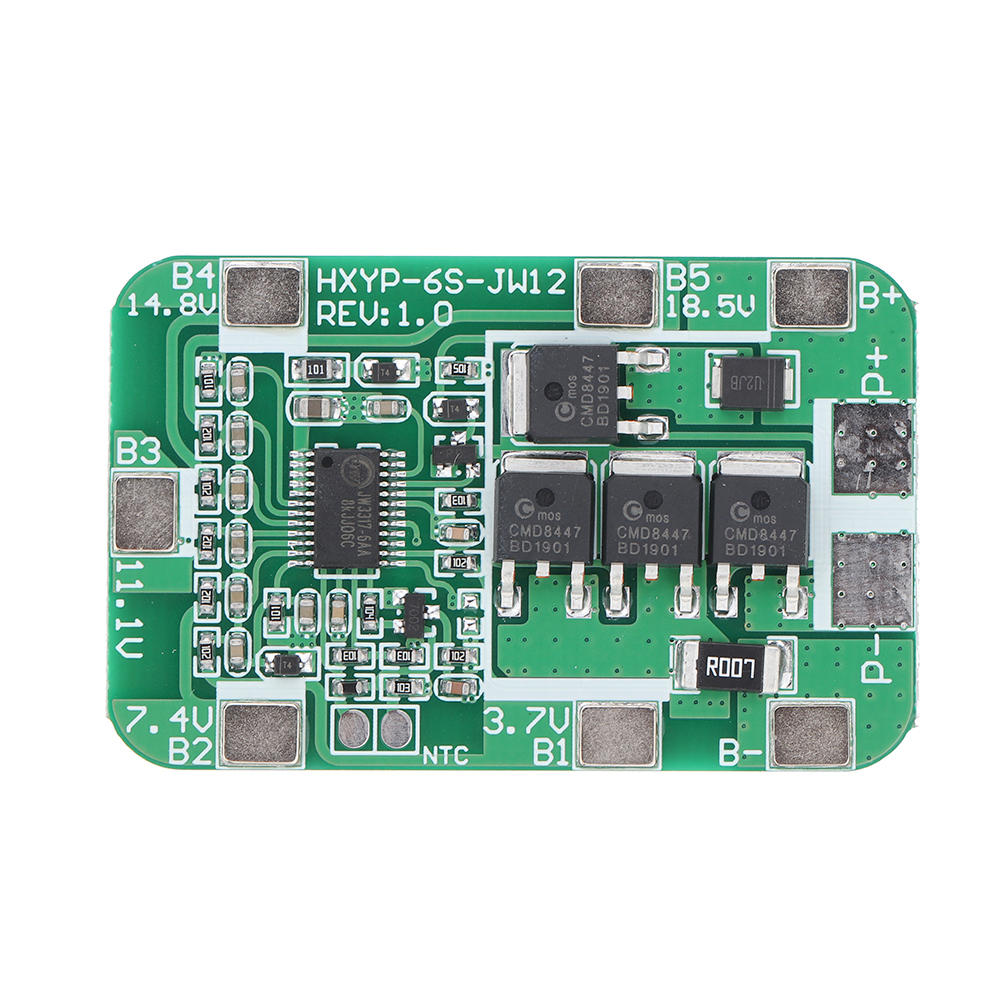

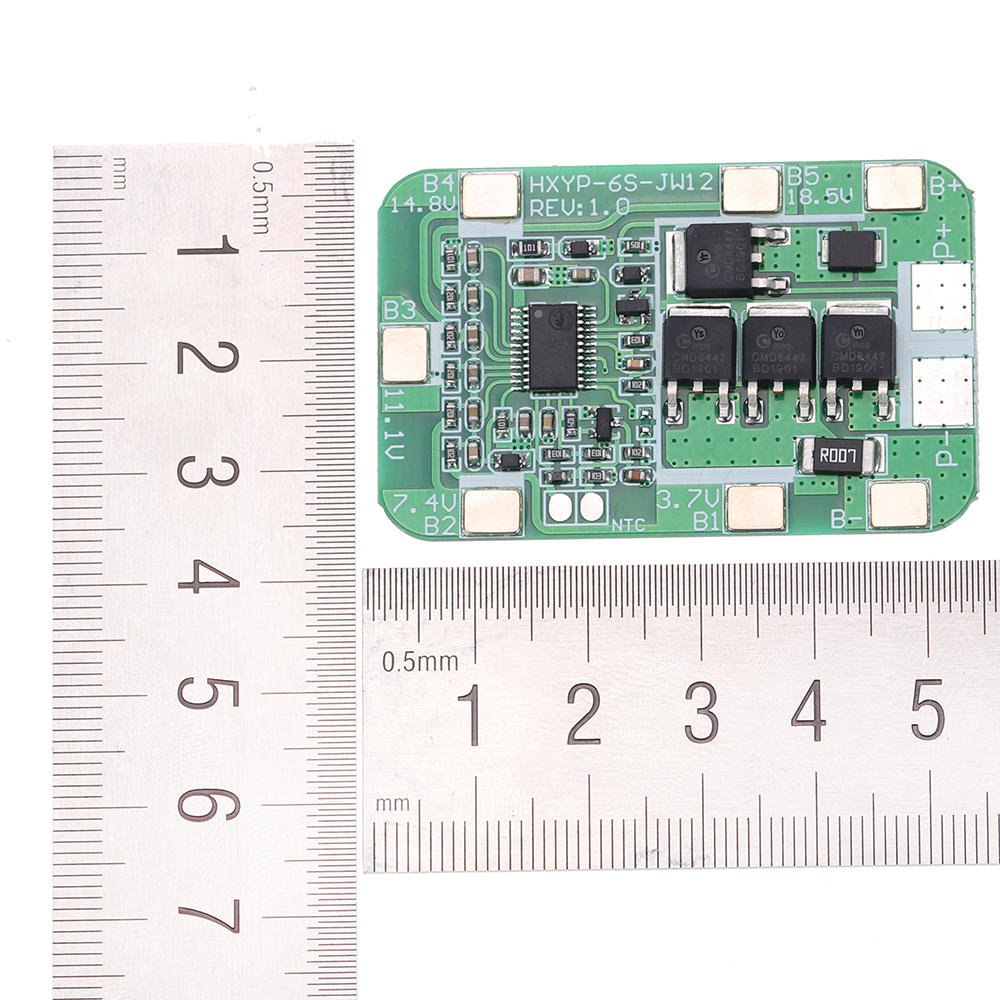

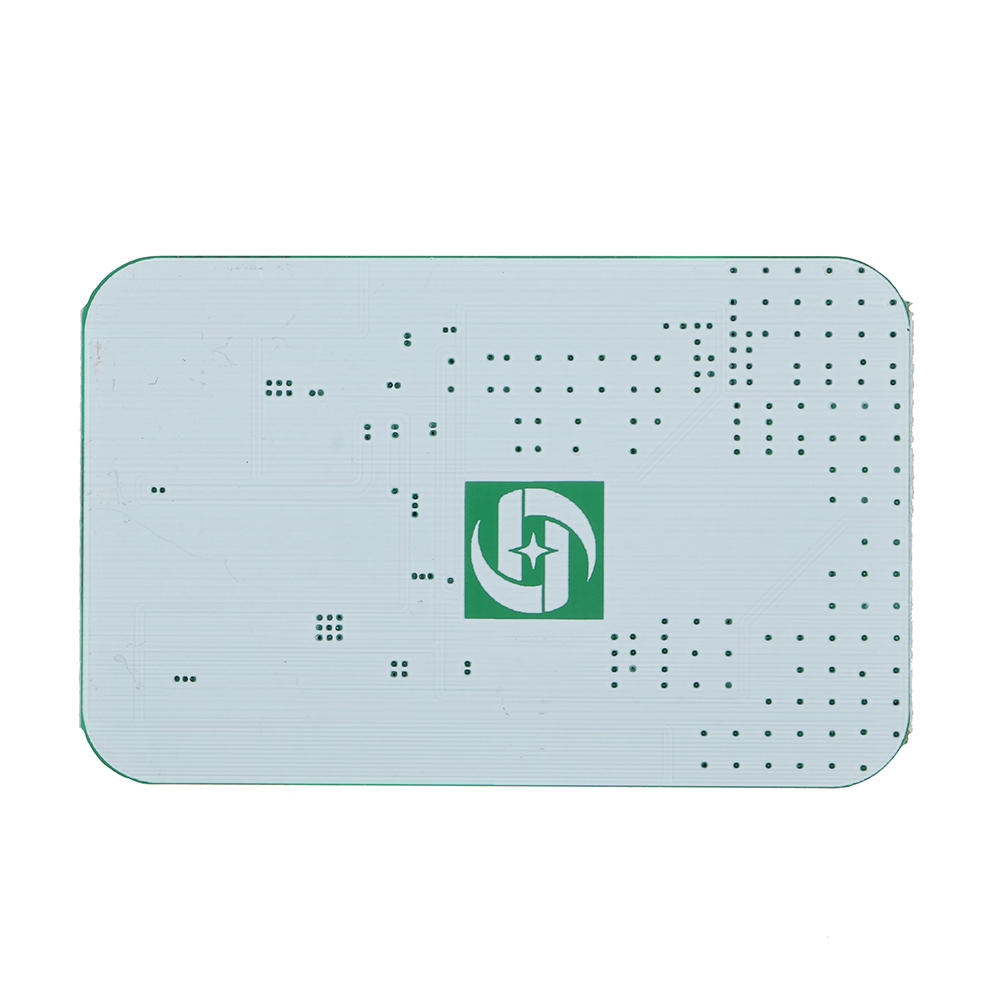

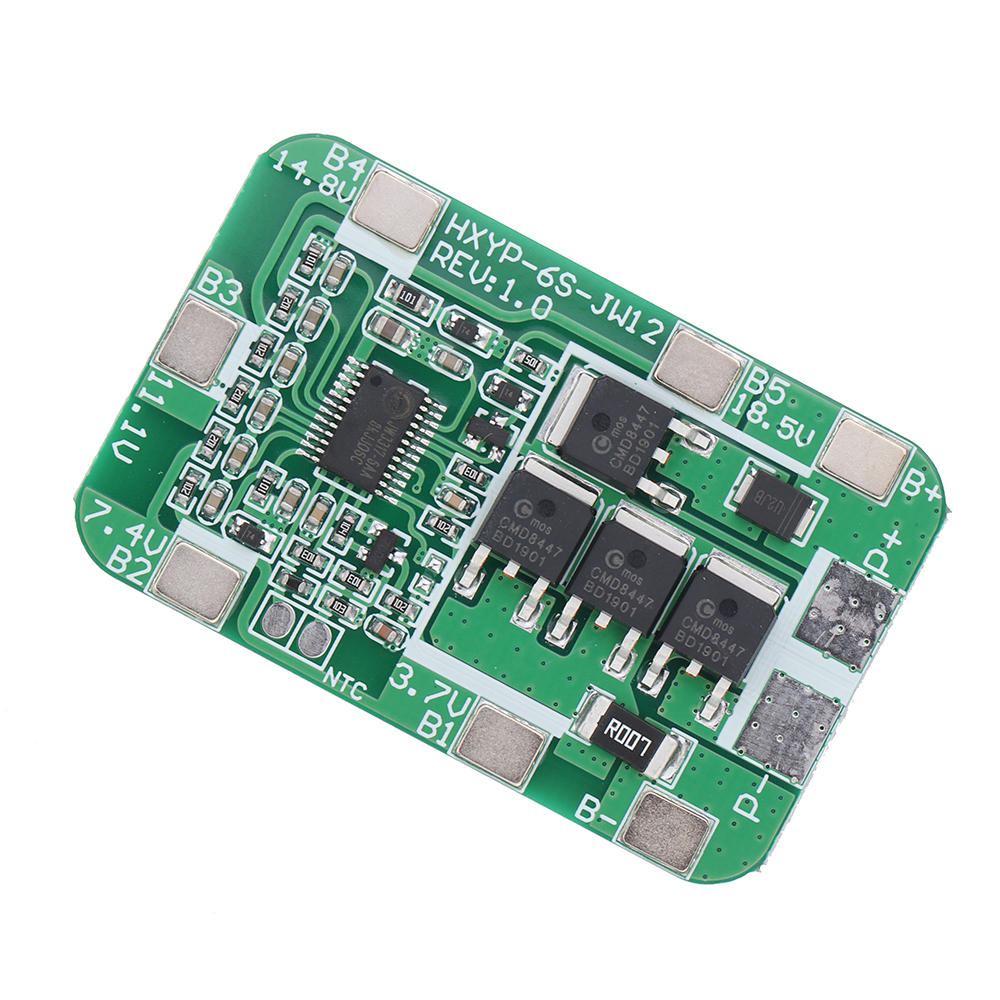

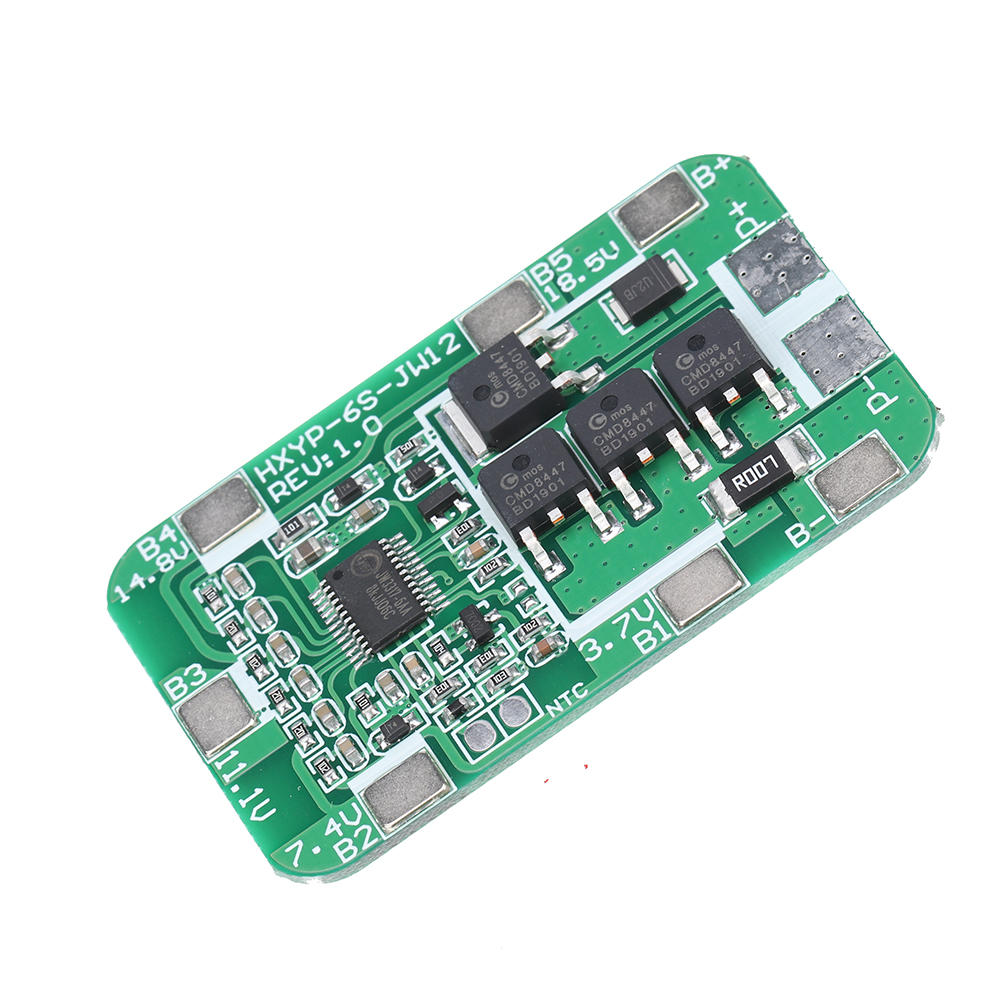

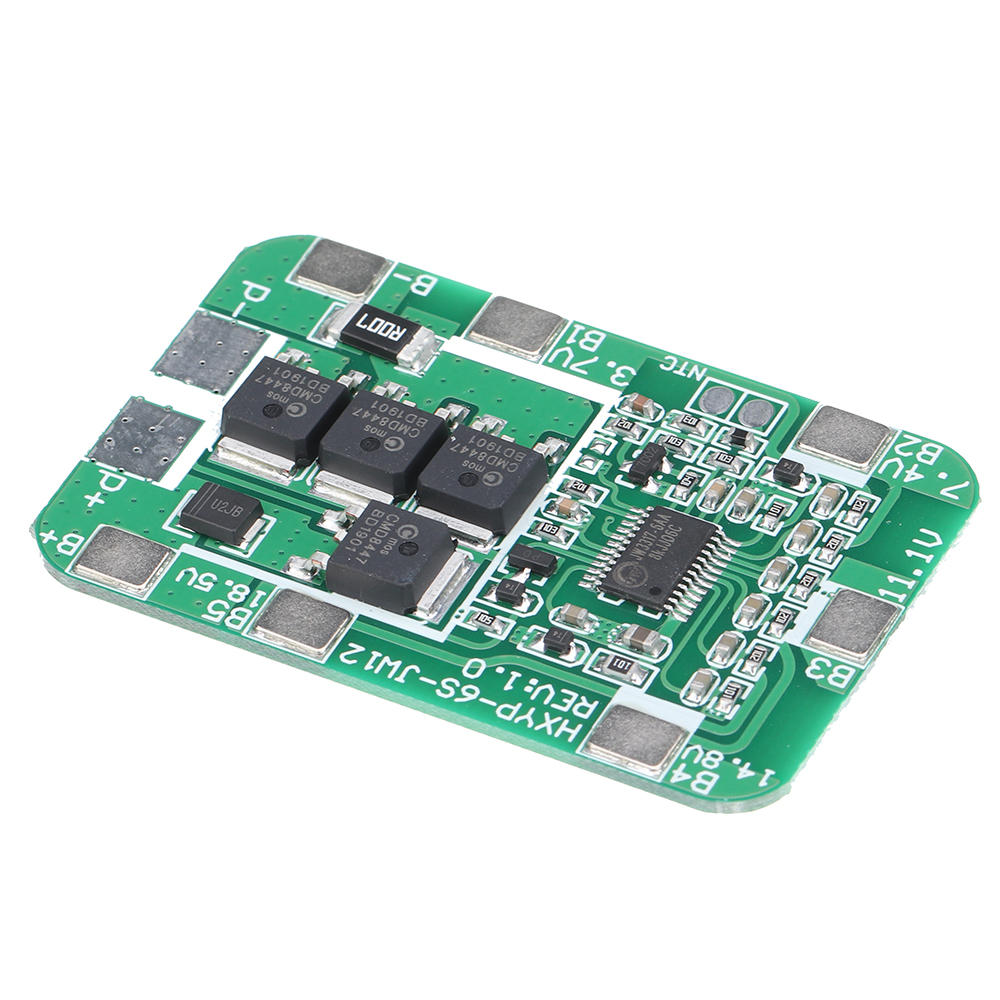

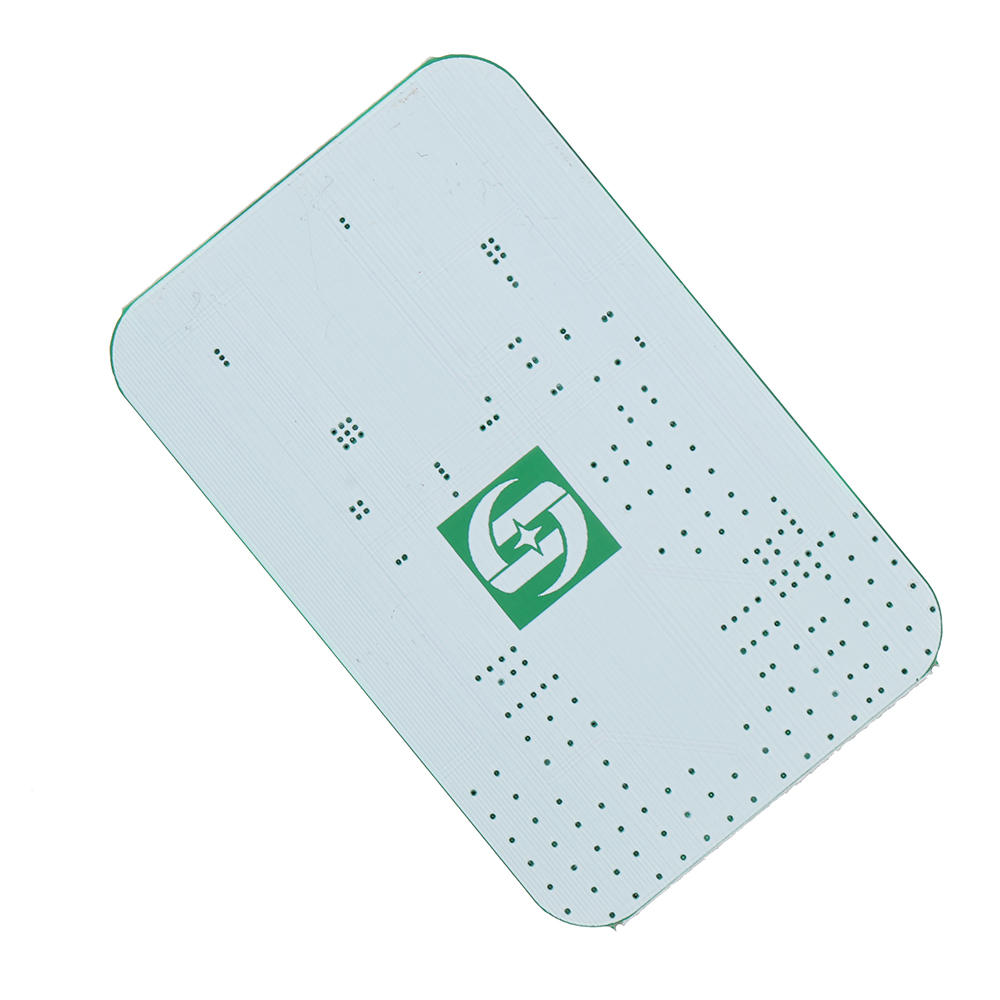

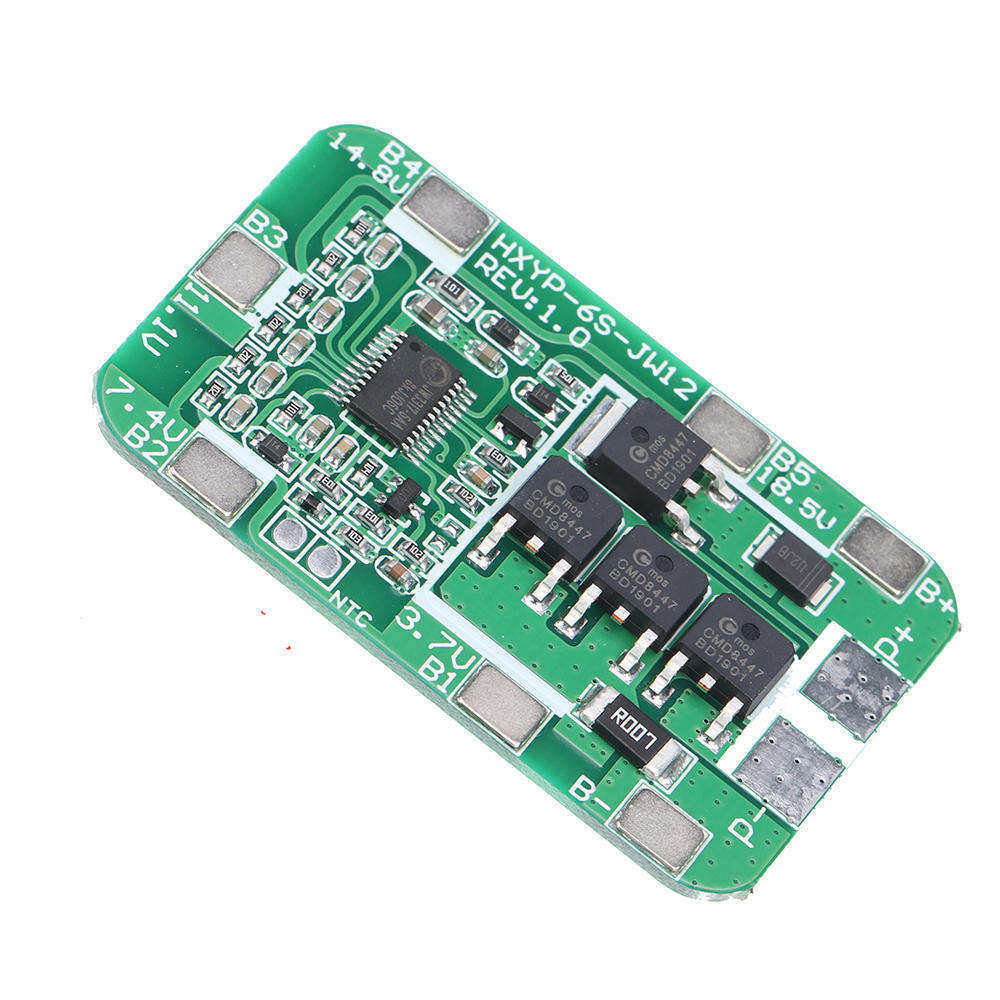

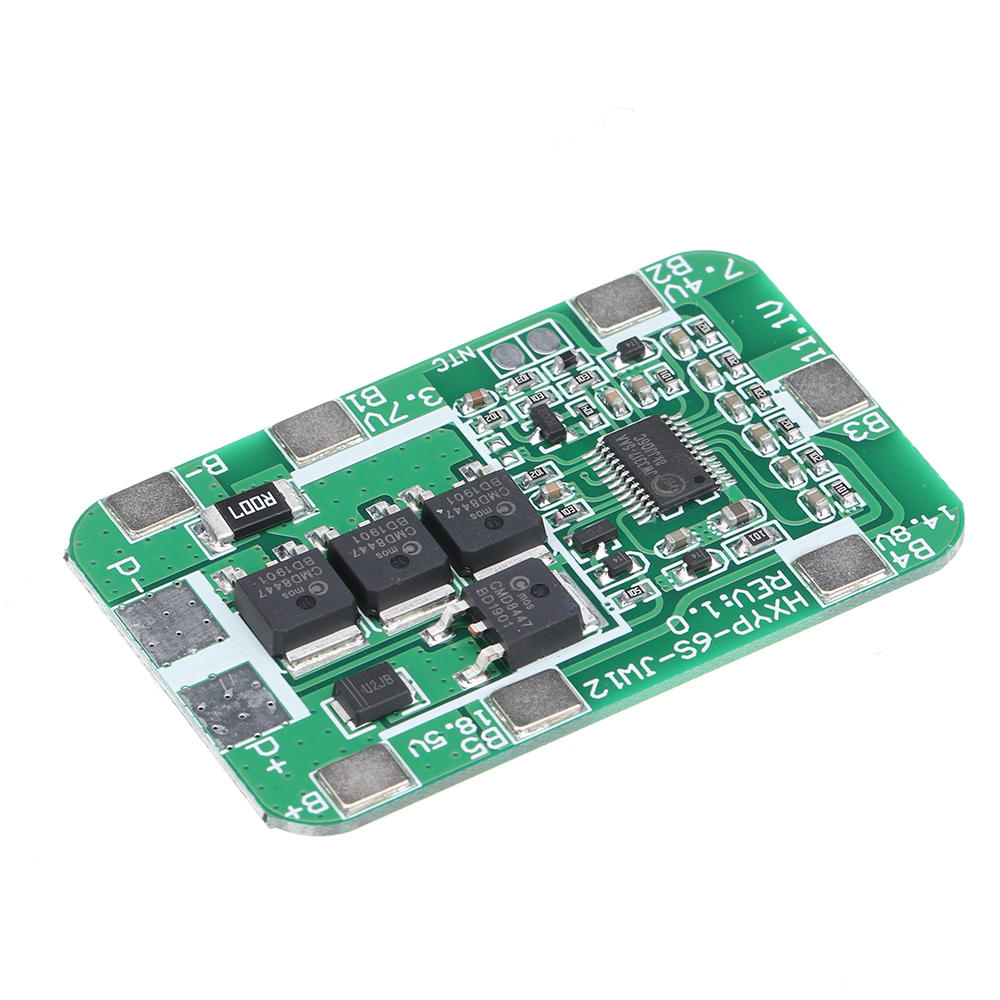

6S 14A 22.2V 18650 Battery Protection Board for 18650 Li-ion Lithium Battery Cell Charger Protect Module PCB BMS
1
Direct purchase from the factory
پرداخت امن
هدیه رایگان
سیاست حمل و نقل
سیاست بازگشتهدیه رایگان
به Roymall خوش آمدید، فروشگاه هدیه پریمیوم شما. ما از حمایت شما بسیار سپاسگزاریم و به عنوان تشکر، هدیه رایگان با هر خرید ارائه می دهیم. آماده اید تا مجموعه ما را کاوش کنید؟ محصولات ما را مرور کنید، سفارش خود را ثبت کنید و منتظر هدیه رایگان خود همراه با خرید باشید.سیاست حمل و نقل
سفارشات را ظرف 2 روز پردازش می کنیم.زمان تحویل استاندارد 5-7 روز کاری است.زمان تحویل بسته به مقصد ممکن است متفاوت باشد.1. سیاست بازگشت
ما فقط کالاهای خریداری شده از roymall.com را می پذیریم. هدایای رایگان قابل مرجوع نیستند. کالای مرجوعی باید استفاده نشده و در بسته بندی اصلی باشد.مرجوعی را ظرف 3-5 روز کاری پس از دریافت پردازش می کنیم.کالاهای سفارشی قابل مرجوع نیستند.با ما تماس بگیرید: service@roymall.com یا واتساپ: +86193598494712.سیاست بازپرداخت
پس از دریافت و بررسی کالای مرجوعی، مبلغ کامل به شما بازگردانده می شود. هزینه های حمل و نقل قابل بازگشت نیستند.با ما تماس بگیرید: service@roymall.com یا واتساپ: +8619359849471
Specifications:
Continuous discharge current: 14A
Instantaneous discharge current: 22A
Charging voltage: lithium battery charger 25.2V
Charging current: 25A (Max)
Overcharge detection voltage: 4.28 ± 0.05V (single core)
Overcharge protection delay: 0.5S
Overcharge release voltage: 4.28±0.05V (single core)
Over-discharge detection voltage: 2.55±0.08V
Over-discharge detection delay: 0.1S
Over discharge release voltage: 2.90 ± 0.1V
Over-current detection voltage: 150mV
Over-current detection delay: 10mS
Over-current protection current: 75±5A
Over-current protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 250uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: u226420Mu03a9
Working current: u226430uA
Sleep current (current over discharge): u226420uA
Working temperature: -20~+80°C
Features:
6 strings (for 6 18650 batteries or polymer lithium batteries in series)
21.6V (rated voltage of polymer battery)
22.2V (rated voltage of 18650 or 3.7V lithium battery)
25.2V (voltage after the lithium battery is fully charged)
Discharge 22A (refers to the upper limit discharge current limit)
Precautions:
1. Lithium battery protection board can not be used for lithium iron phosphate battery, xenon lamp, hand drill battery pack, electric fish battery pack, electric bicycle battery pack, baby car battery, 550 or more power motor, 1W fisheye LED lamp, Customers who purchase in the above combination should pay attention to the following products: the massager battery pack, LED light backup power supply, 12V electronic products, solar street light battery pack, monitoring standby power supply, and other products.
2. For discharge products above 3A, the discharge rate of the battery should be more than 3C. Magnification formula: 1C rate battery, 2000 capacity equals 2AH*1=2A working current, 3C rate battery, 2000 capacity equals 2A*3=6A working current. In use, the battery will heat up or the battery rate is not applicable. The battery will be damaged quickly after long-term use.
3. After connecting the line, you need to charge first to have output.
4. When connecting 6 sets of batteries in series, please ensure that the voltage of each set of batteries is the same. If they are different, please fill each set of batteries separately and use them in series. During the discharge test, the battery with the fastest voltage drop is the poor battery.
5. Do not mix good battery and poor battery! The closer the internal resistance of the 6-cell battery is, the better! (The effect of 4 good batteries + 2 poor batteries = the effect of 6 poor batteries)
Connection Diagram:

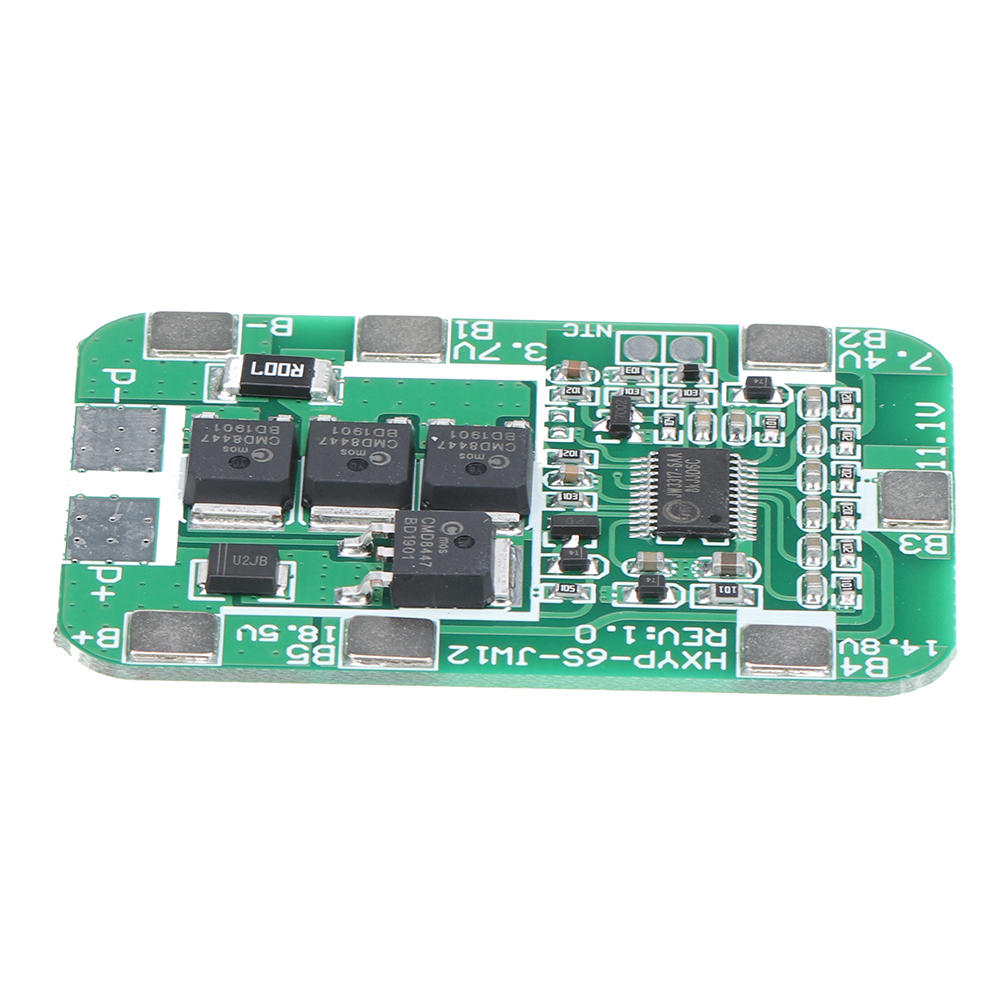

Strictly follow the diagram wiring: 0V (B-), 3.7V (B1), 7.4V (B2), 11.1V (B3), 14.8V (B4), 18.5V (B5), 22.2V (B+), do not Deliberate short circuit!
Package Included:
1 x 6S 14A 22.2V 18650 Battery Protection Board
