Specifications:
Brand: GXservo
Control system: PWM control system
Temperature range: -20u2103 - +60u2103
Voltage range: 6.0V - 7.4V
Test voltage: AT 6.0V / AT 7.4V
Torque: 22KG.CM / 25KG.CM
Speed: 0.2s/60°, 0.18s/60°
No-load current: 300MA/450MA
Load current: 180OMA/2400MA
Dead zone width: 2 microseconds
Cycle: >15000 TIMES
Working angle: 90°±5°
Direction: Counterclockwise Pulse 1500 TO 2500 USEC
Drive mode: field effect transistor drive
Motor type: Iron core motor 1723
Potentiometer: indirect transmission
Amplifier Type: Digital
Size: 40*20*39MM
Weight: 60G (excluding accessories)
Ball Bearing: Double Ball Bearing

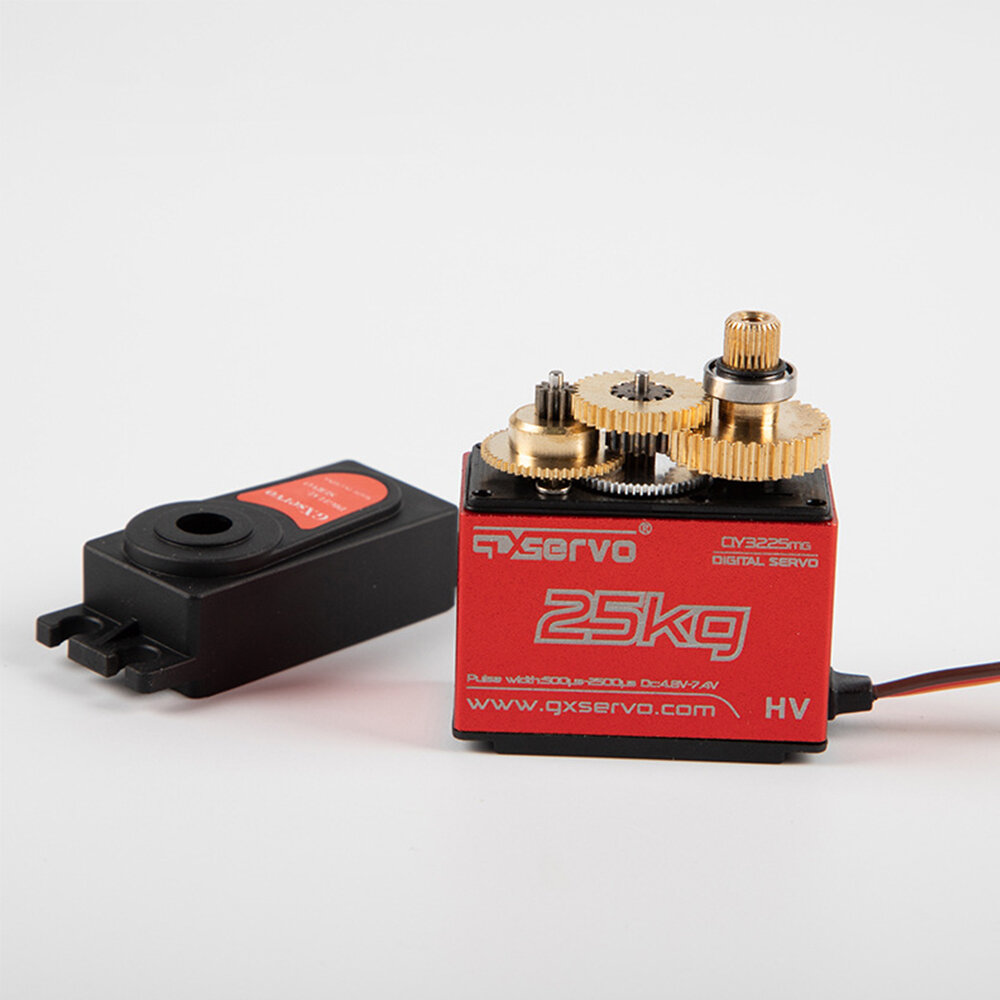

Gear material: imported copper steel material

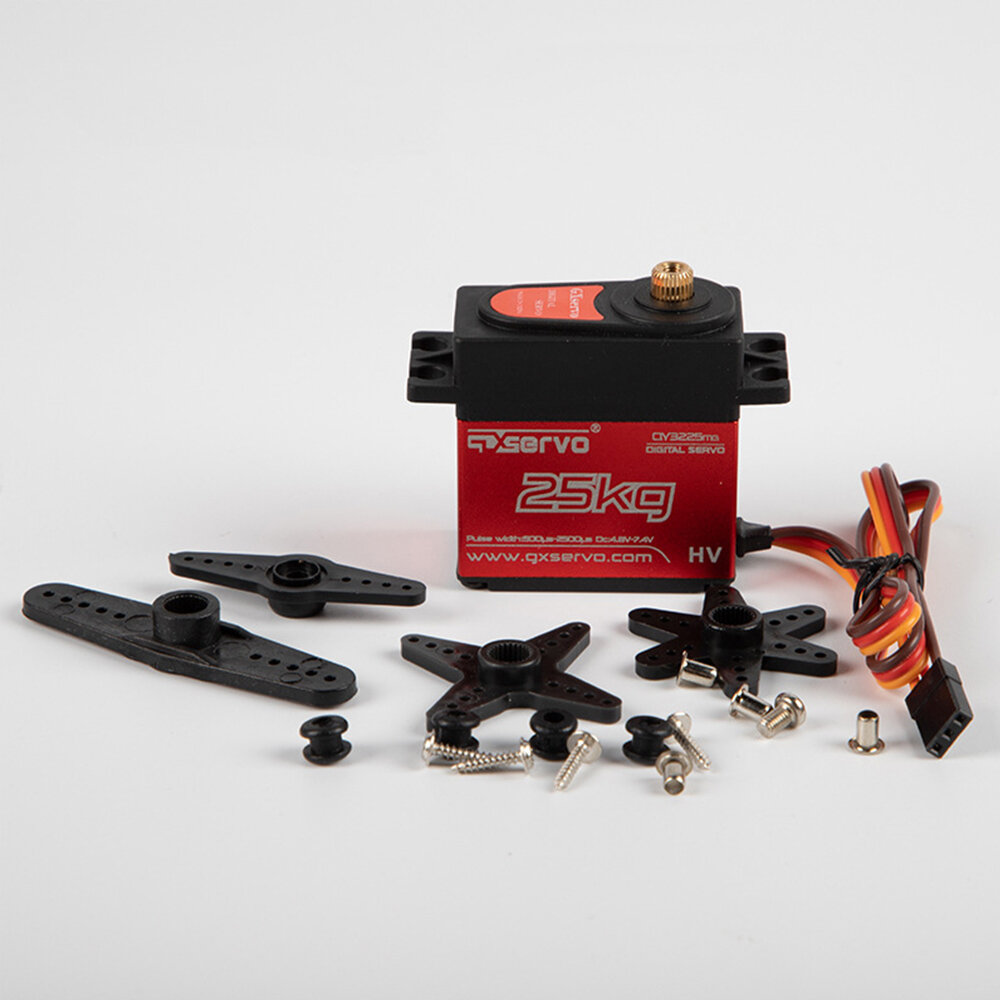

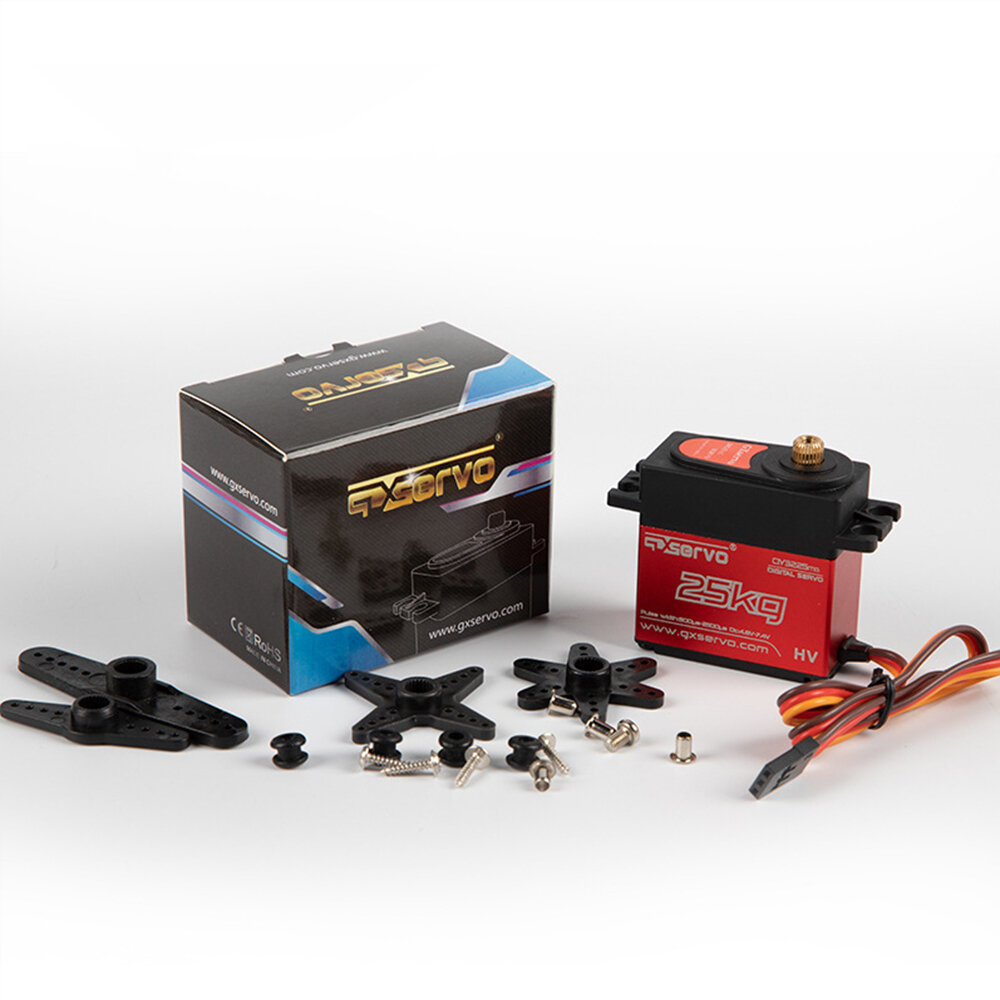

Packing included :

1x Digital Servo
1x Arm
1x set of Accessories

Note:

(1) Under the static working current, servo is energized, but there is no movement.
(2) In the case of no-load current operation, servos move under no-load conditions.
(3) The current of servo when outputting the maximum torque under the condition of locked rotor current
(4) The baud rate can be modified to 500K, 250K, 128000, 115200, 76800, 57600, 38400
(5) The maximum number of available bus nodes depends on the power supply capacity and the allowable current specifications of the cable.
(6) The stall torque is the maximum stall torque of the steering gear. The actual working torque is selected from 1 / 3- -1/5 of this value as suitable for the operating point.
